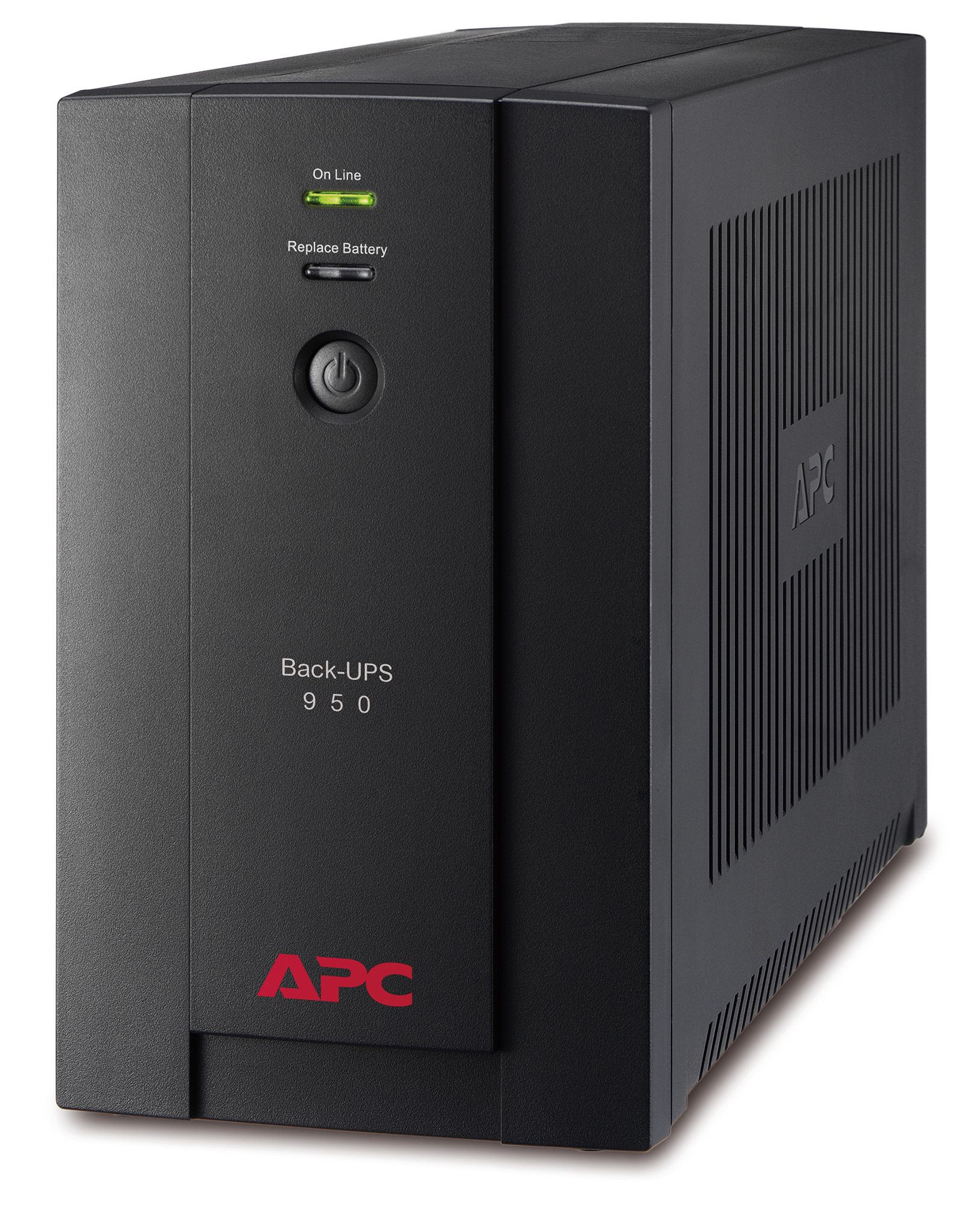

APC Backup UPS 950VA, 230V, AVR, IEC Socket

Description

• Automatic restart of loads after UPS shutdown
  Automatically starts up the connected equipment upon the return of utility power.
• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Automatic Voltage Regulation (AVR)
  Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
• Resettable circuit breaker
  Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
• Telephone dataline surge protection
  Provides protection of connected equipment from power surges traveling on telephone lines.
• USB connection
  Use your PC to access additional power protection and management features for your UPS via a USB Port.

  Output power capacity

  950VA

  Max Configurable Power (Watts)

  480Watts / 950VA

  Nominal Output Voltage

  230V

  Output Frequency (sync to mains)

  50/60 Hz +/-1 Hz

  Output Frequency (not synced)

  50/60 Hz +/-1 Hz

  Topology

  Line Interactive

  Waveform type

  Stepped approximation to a sinewave

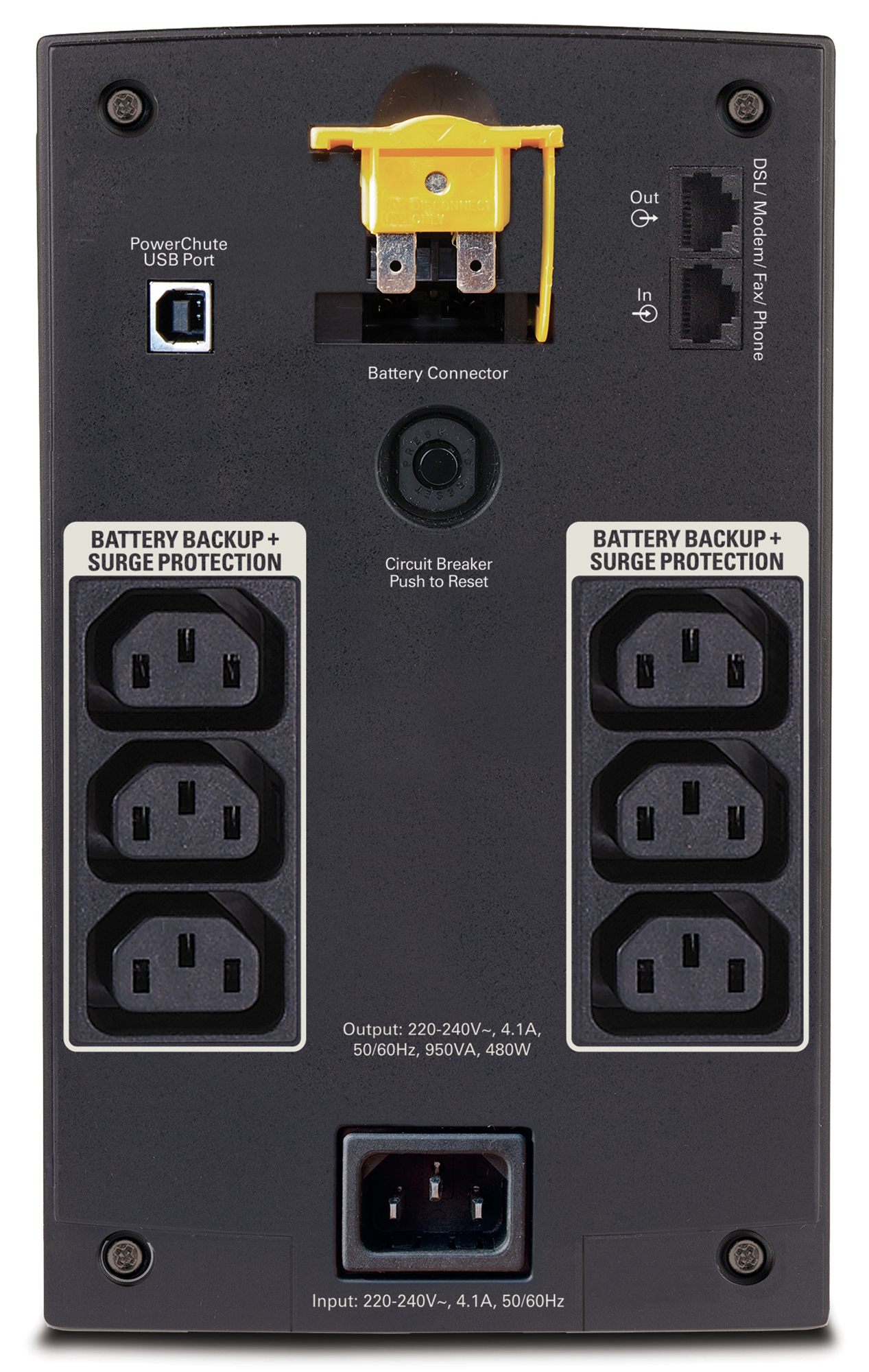

  Output Connections

  (1) IEC Jumpers (Battery Backup)

  (6) IEC 320 C13 (Battery Backup)

  Transfer Time

  8ms typical : 10 ms maximum
